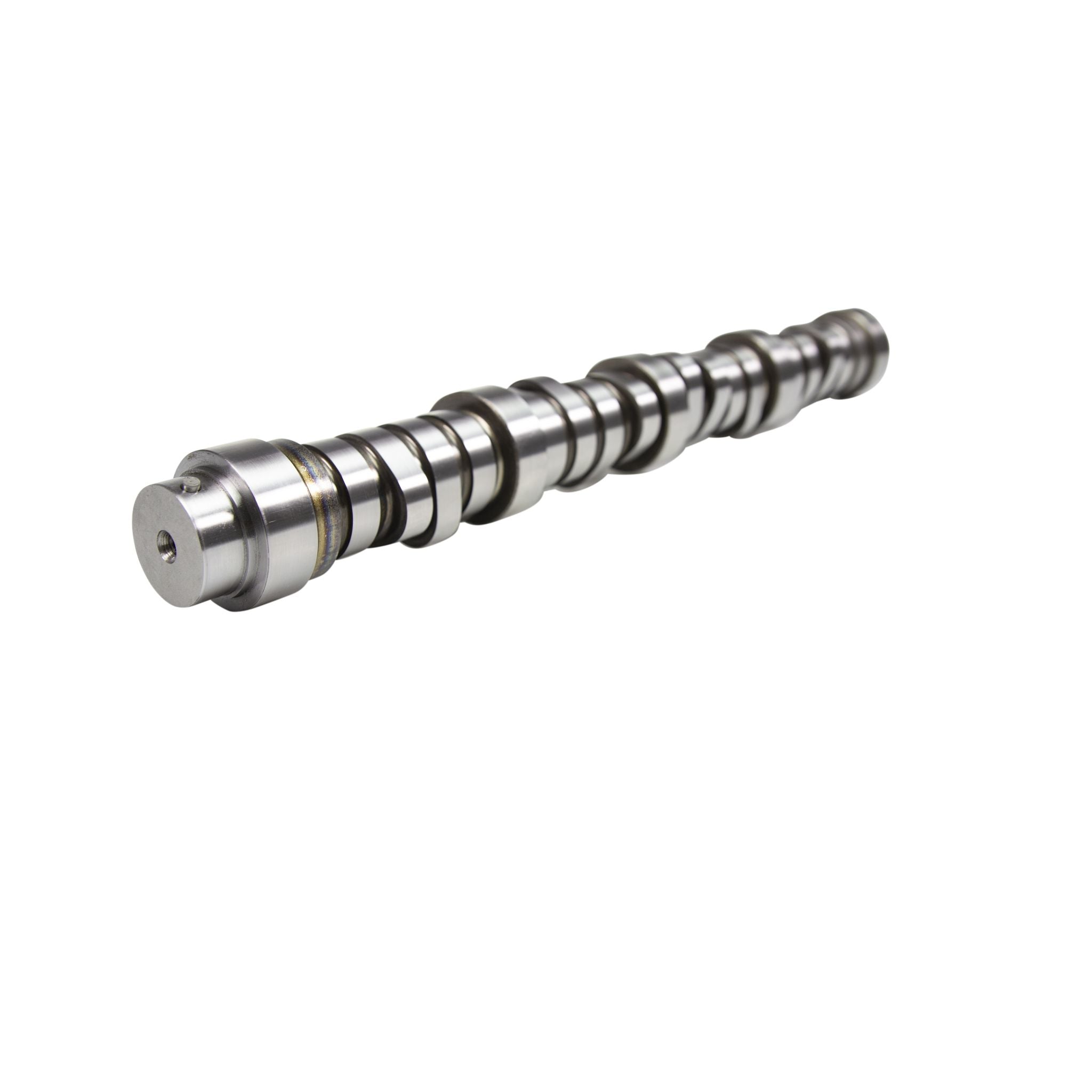

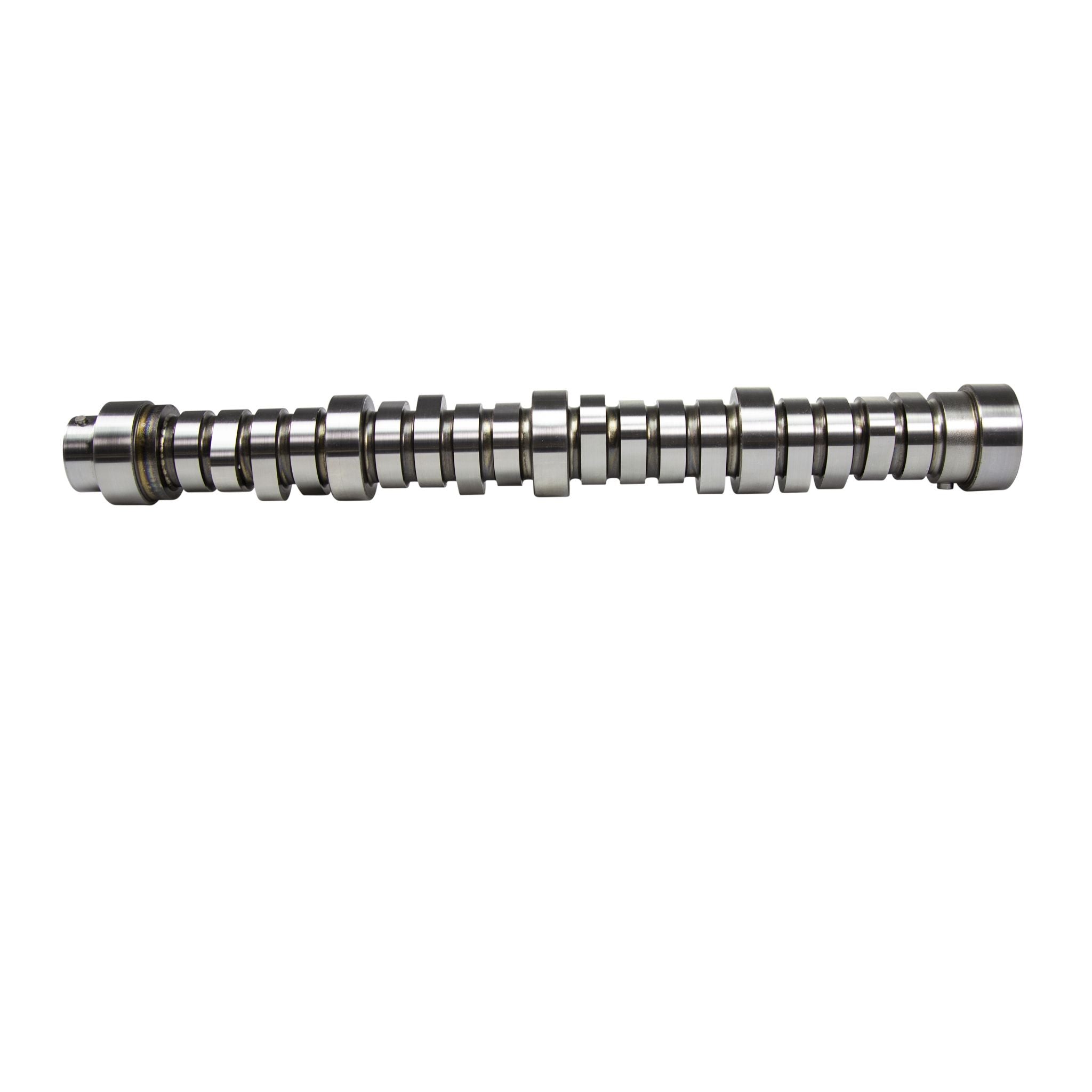

COMP Cams Stage 1 LST Hydraulic Roller Camshaft for 03-10 Ford Powerstroke 6.0/6.4L - 435-300-13

Additional Attributes:

• GTIN: 00036584409045
• Basic Operating RPM Range: 1,000-4,000
• Exhaust Valve Lash: 0.014
• Intake Valve Lash: 0.012
• Recommended Valve Spring Kit: N/A
• Grind Number: 245NSR
• Camshaft Material: Billet Steel
• Lifters Included: No
• Assembly Lubricant Included: No
• Lobe Separation: 105
• Valve Springs Required: No
• Engine Family: 2003-2010 Ford 6.0/6.4L Powerstroke Diesel
• Camshaft Series: LST NSR
• Cam Type: Hydraulic Roller
• Lifter Style: Hydraulic Roller
• Intake Valve Lift: 0.367
• Exhaust Valve Lift: 0.371
• Usage: Street
• Advertised Exhaust Duration: 258
• Advertised Intake Duration: 245
• Exhaust Duration at .050 inch Lift: 198
• Intake Duration at .050 Inch Lift: 180
• Computer Tune Required?: No

Extened Information:

• Life Cycle Status: Available To Order
• Emissions : Not in CA

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.5 x 2.4 x 2.4 inches
