Additional Attributes:
- GTIN: 00036584409052
- Basic Operating RPM Range: 1,200-4,500
- Grind Number: 252NSR
- Camshaft Material: Billet Steel
- Lifters Included: No
- Assembly Lubricant Included: No
- Lobe Separation: 107
- Valve Springs Required: N/A
- Engine Family: 2003-2010 Ford Powerstroke 6.0/6.4L Diesel
- Camshaft Series: LST NSR
- Cam Type: Hydraulic Roller
- Lifter Style: Hydraulic Roller
- Intake Valve Lift: 0.39
- Exhaust Valve Lift: 0.384
- Usage: Street/Strip
- Advertised Exhaust Duration: 274
- Advertised Intake Duration: 251
- Exhaust Duration at .050 inch Lift: 206
- Intake Duration at .050 Inch Lift: 188
- Computer Tune Required?: Yes
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 22.5 x 2.4 x 2.4 inches
PDF:

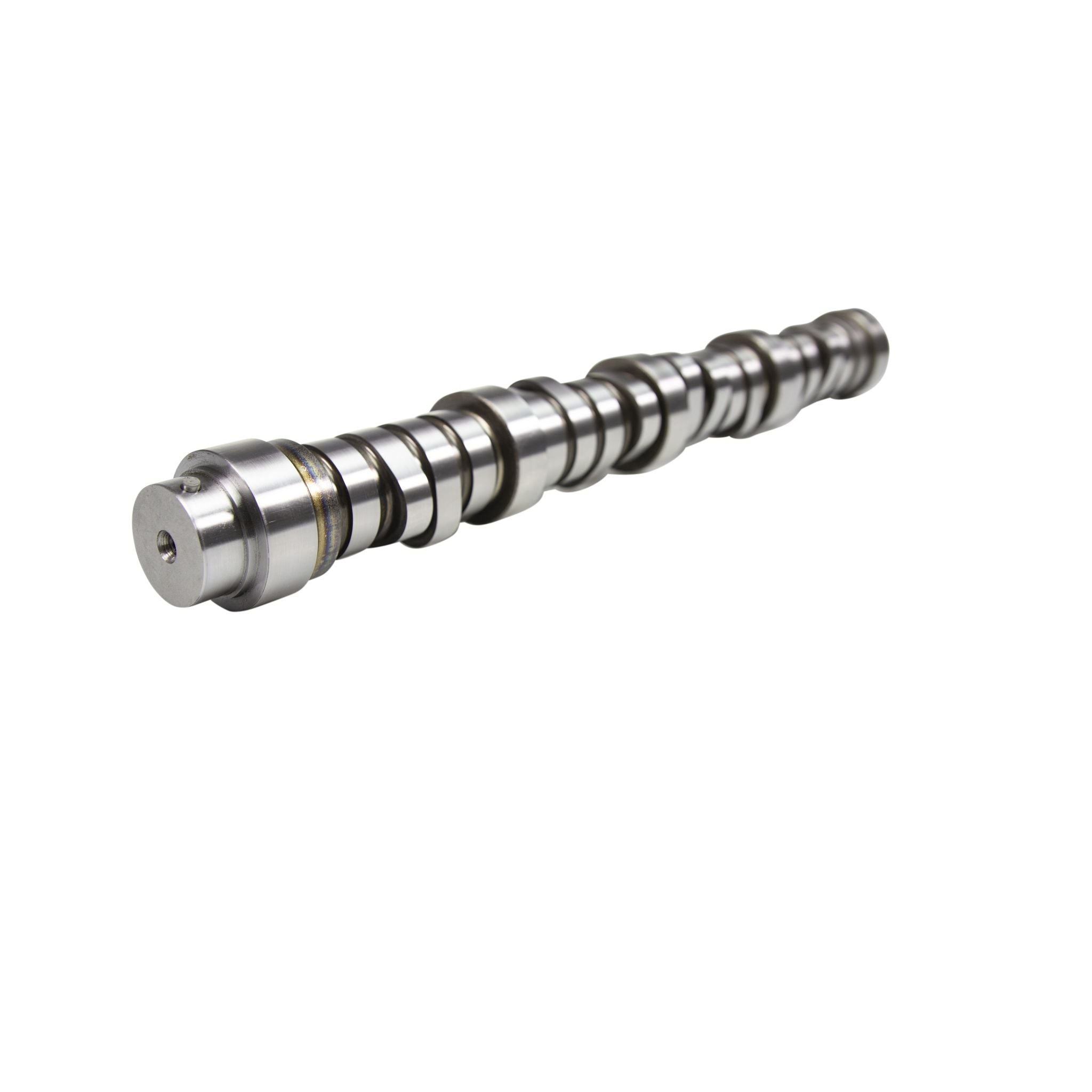

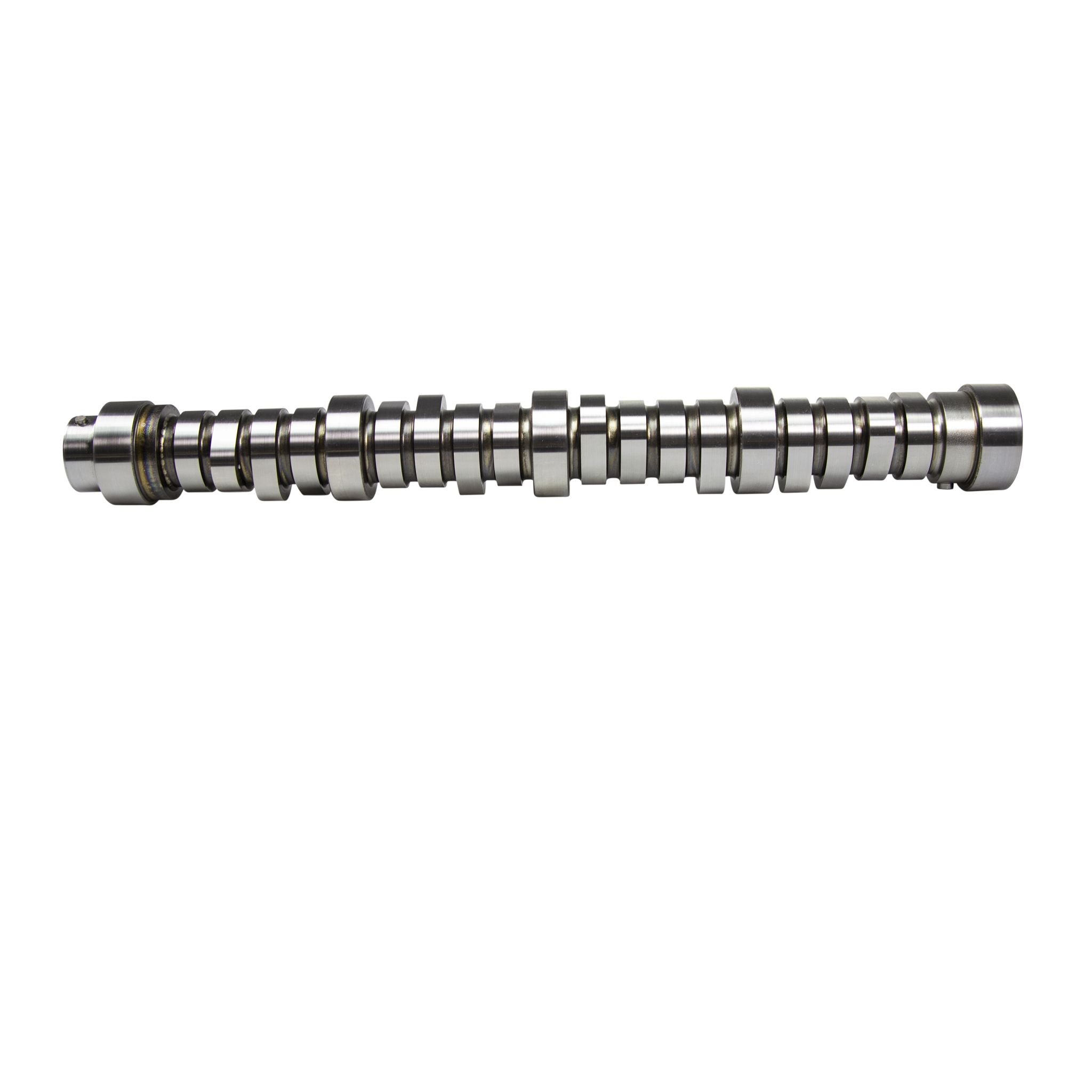

dddbebdc29809COMP Cams Stage 2 LST Hydraulic Roller Camshaft for 03-10 Ford Powerstroke 6.0/6.4L - 435-301-13
