Additional Attributes:
- GTIN: 00036584611936
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- Camshaft Series: Magnum
- Usage: Street/Strip
- Cam Type: Hydraulic Flat Tappet
- Grind Number: 305H
- Basic Operating RPM Range: 3,000-6800
- Intake Duration at .050 Inch Lift: 253
- Exhaust Duration at .050 inch Lift: 253
- Advertised Intake Duration: 305
- Advertised Exhaust Duration: 305
- Lobe Separation: 110
- Intake Valve Lift: 0.54
- Exhaust Valve Lift: 0.54
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: Yes
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Cast Iron
- Engine Family: Oldsmobile 260-455 c.i. 8 Cylinder (1967-1990)
- SK-Kit Upgrade: SK42-237-4
- Cam and Lifter Kit Upgrade: CL42-237-4
- Lifter Type: Hydraulic Flat Tappet
- K-Kit Upgrade: K42-237-4
- Amazon ASIN: B001R98EPG
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Extened Information:
- Life Cycle Status: Available To Order
- Emissions : Not in CA
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 3 x 2.75 inches
PDF:

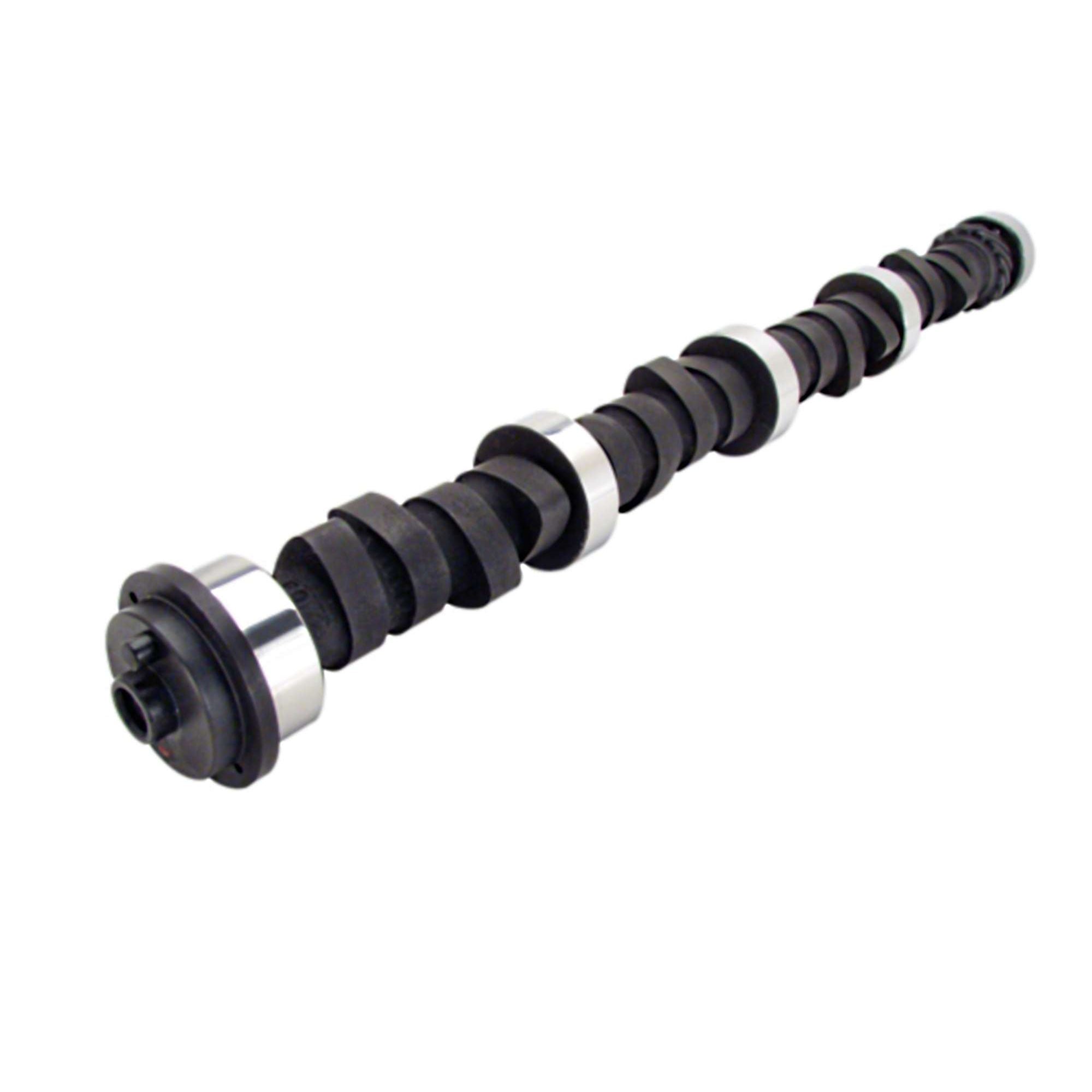

dddbebdc29809COMP Cams Camshaft OL 305H-10 - 42-237-4
