UPR 2015-2017 Ford Mustang GT SV TVS w/CSS - Black

$339.99 USD
By UPR
SKU: UPR-5030-135-1-CSS
View details
This UPR single valve Plug N Play „¢ catch can kit for the 2015-19 Ford Mustang GT with TVS, VMP Gen 2, Gen 2, Gen 3R & or Roush rear-inlet supercharger is the perfect fit for your engine bay. With it's extremely efficient compact design and Incredible Looks it features an adjustable mounting bracket & clean side separator . We went the extra mile to ensure you get the best quality components. Utilizing Continental Braided Hose and Billet Hose Ends to give you the Strongest and Best Performing Setup Possible. No cheap stock lines here that have been cut and spliced on! Featuring the New UPR Plug N Play „¢ Catch Can Fittings. So you can empty the it without removing the intake cover or catch can lines from your engine. (UPR Exclusive Push Button Fittings) We have hundreds of hours testing our new 4 Stage Oil Separator to ensure the claims and results will exceed your expectations. We even double the size of the oil containment chamber. The design of this unit is more along the lines of a True Engineer and cannot be compared or confused with units that have side by inlets and outlets with screen rolled up and shoved in them. The 4 chamber technology in UPR catch cans captures and filters all the oil vapor and trash from getting into your air intake tract. That's the most important reason for a catch can in the first place! Manufactured from Domestic T-6 6061 Aluminum bar stock and finished off using only the best Diamond cutters to exceed your expectations of what a superior product should fit and look like. UPR is the largest aftermarket catch can manufacturer in the country. Continually improving our designs to stay ahead of the competition and give you the cutting edge technology of tomorrow today. We are so confident we offer an unconditional warranty on our products to let you know you can always count on UPRproducts.

Installs in 15 minutes.
Upgrades available:
UPR Billet Pro Series Check Valves:
These are larger, higher flowing check valves than the standard check valve normally installed in the hoses during assembly. Check valves only allow air flow in one direction, so it will prevent intake pulses and reversion from entering the catch can, and in turbo applications it will prevent boost pressure from leaking past and pressurizing the catch can and crankcase. The larger check valves will increase the vacuum through the catch can and deliver better crankcase evacuation. The improved crankcase evacuation translates to increased MPG and more responsive low speed drivability.
UPR SS Magnetic Drain Plug:
The Stainless Steel magnetic drain plug would replace the drain plug on the bottom of the catch can with an allen head plug that has a magnet embedded into it. It will attract any ferrous metal material to it so the user can inspect it.

UPR Catch Can Drain Line Kit:
The drain line kit includes a drain valve, hose and fittings needed to install the drain valve. It allows the user to relocate the drain somewhere easier to access like the wheel well opening or bumper area.

**You would select either the Stainless Steel Magnetic Drain Plug or The Catch Drain Line Kit, not both. If neither are selected, the catch can will have a standard plug installed.

THIS PART DOES NOT CARRY AN CARB EO NUMBER, AND THEREFORE IS FOR RACING / OFF ROAD USE ONLY. NOT FOR SALE OR USE IN CALIFORNIA DUE TO CARB/EMISSIONS. ALL CALIFORNIA ORDERS WILL BE CANCELLED AND REFUNDED

Product Features:

» 8oz Capacity
» Show Quality Finish
» Can measures 2.5" x 6"
» Prevents Oil from Entering Intake
» Exclusive 4 Stage Design Traps Oil
» Innovative Diffuser Tube and Chamber
» High Quality CNC Machined Billet Aluminum
» Specifically made for TVS, VMP & Roush Supercharged cars
» Plug N Play „¢ fittings at Can & Separator connections
» 5/8" Oil Resistant Continental Braided Hose included
» Innovative Adjustable Mounting Bracket (360° Rotation)
» Improves Fuel Economy, Throttle Response & Performance
» Black Anodized Finish

Includes:

» Billet Check Valve
» OEM 5/8" Factory Connectors
» 5/8" Continental Braided Hoses
» Billet Hose Ends with Clamps
» Billet Adjustable Mounting Bracket
» Plug N Play „¢ quick release connectors & billet fittings
» Single Valve Billet Catch Can (Exclusive 4 Stage Design)
» Clean Side Separator (Multi Stage Filtration) New Low Profile Design

Fits These Vehicles:

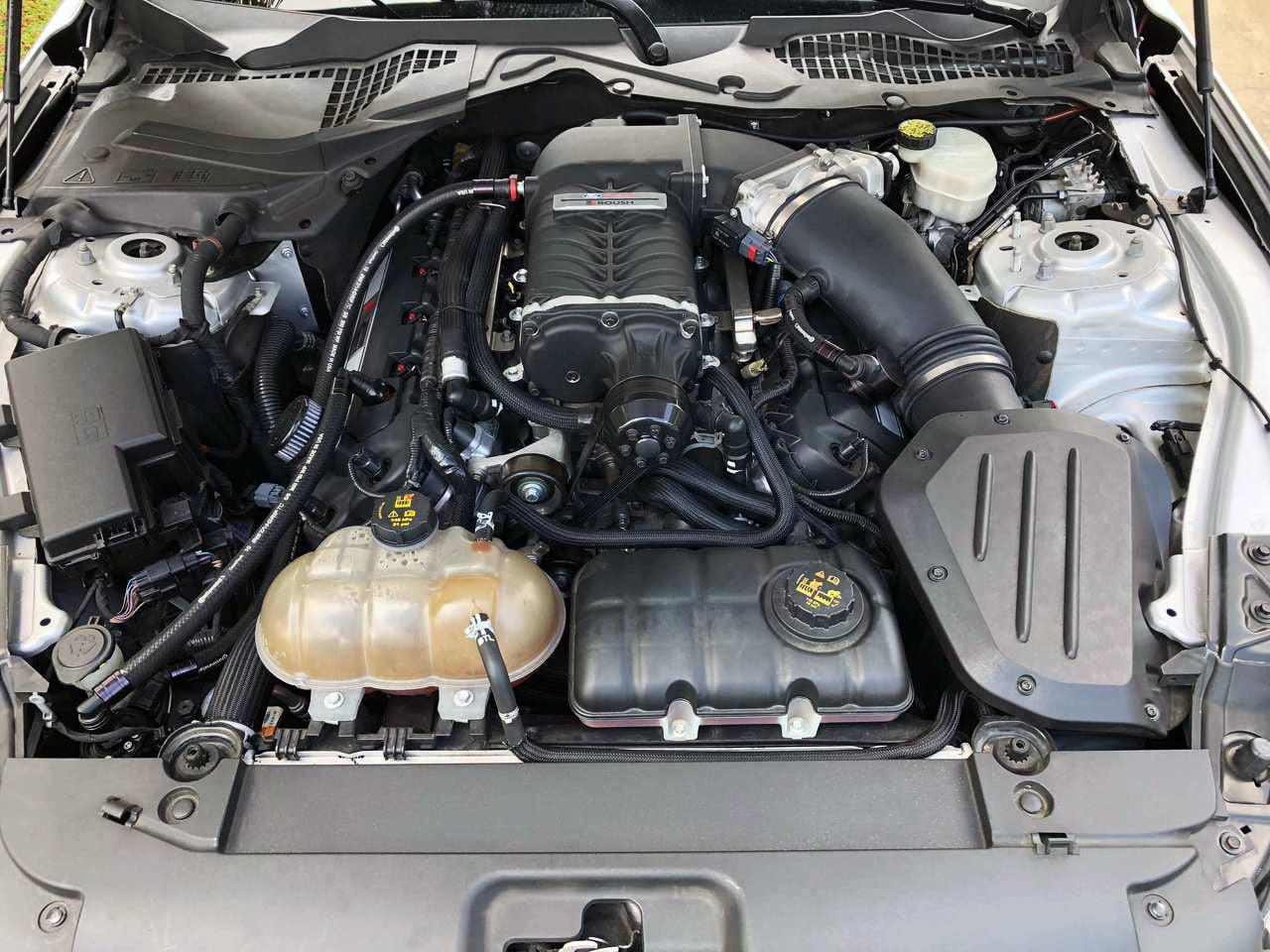

2015 2016 2017 2018 2019 2020 2021 2022 2023 Ford Mustang GT 5.0 Coyote S550 with TVS, VMP & Roush Superchargers with rear, right side throttle body inlet. For forward facing 2650 style super charger, see PN 5030-260-1-CSCC

Made in the USA!

Q & A

Question: What is the problem with your PCV system ?

Answer: The Positive Crankcase Ventilation (PCV) system is used to recycle the gases that leak or "blow-by" the your engines piston rings and create a positive pressure in the crankcase. By venting these gases along with oil mist/vapor from the crankcase and route it back into the intake manifold so it can be burned off.

This is a poor fix from automobile manufacturers, because over time the excess oil vapor collects along the inside of the intake tract and forms a "sludge". This leads to a variety of issues including carbon build up, retarded timing, detonation, power loss and even engine failure.

UPR s fix for the PCV system used on many engines for reducing toxic gases from being released into the atmosphere and eliminating positive crankcase pressure / Blow-By.


Question: What does a UPR Catch Can do ?

Answer: UPR s Billet Catch Can / oil-air separator will condense and collect the oil vapor before it has any chance to reach the intake tract. As the gas and oil vapor enters UPR s can they pass through a Chambered filtering system that cools the oil vapor and gives it something to adhere to.

Then the oil forms into droplets and collect in the bottom of the UPR Catch Can so that they can later be drained. This is where the additional Chambered filtering system comes into play allowing only the clean air to pass through so it can eliminate unwanted blow by.

All engines have blow by otherwise there would be no need for a PCV system on your engine. PCV = Positive Crankcase Valve, which eliminates Positive Crankcase Pressure. UPR s Catch Can has become one of the most widely used and recommended cures for just about every application.

The engine size and horsepower level is not relevant to the performance of the UPR Catch Can. UPR s Catch Can has become a cornerstone by improving the Performance and Economy on any vehicle you install it on.
