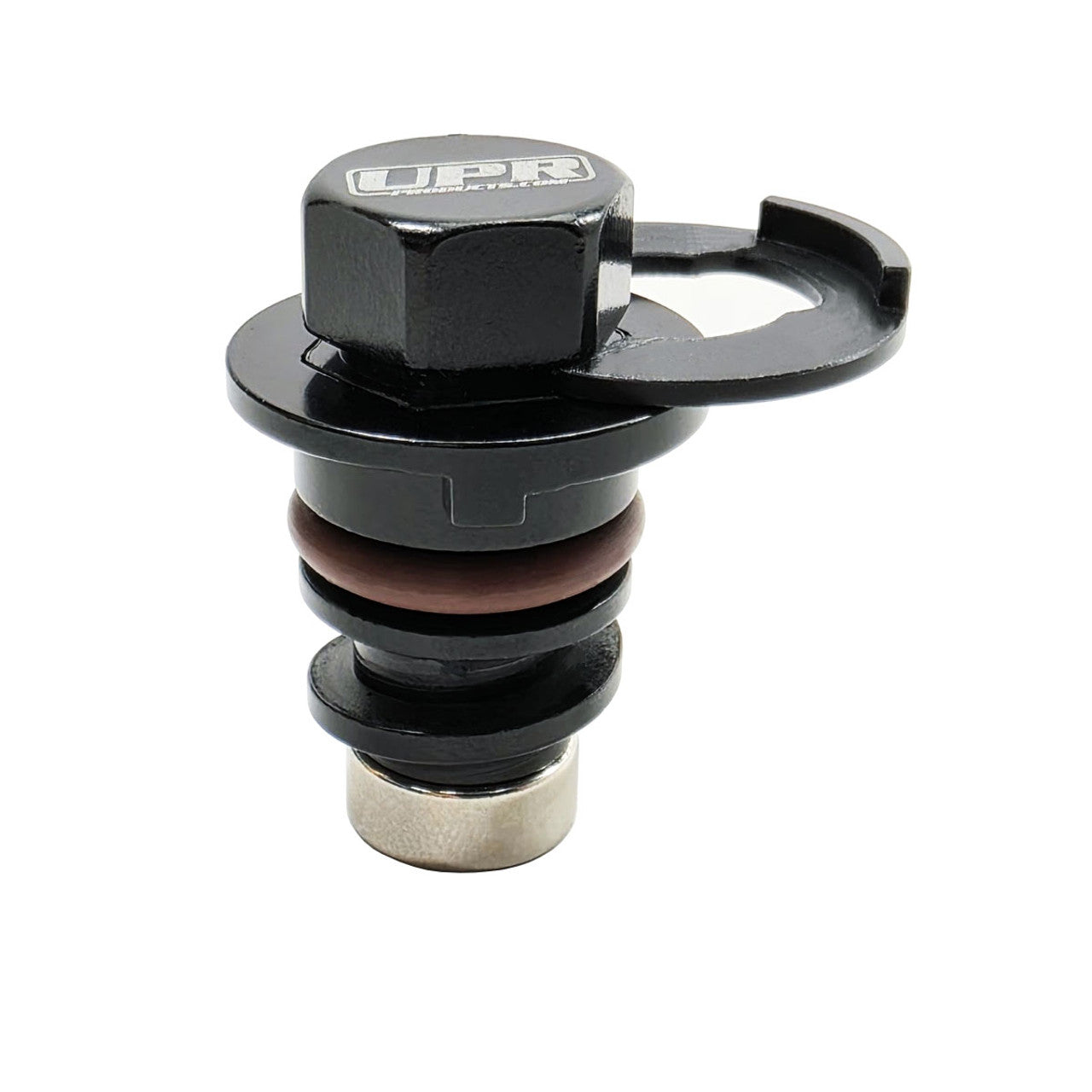

UPR VW Quick Change Magnetic Oil Drain Plug w/Lock Washers

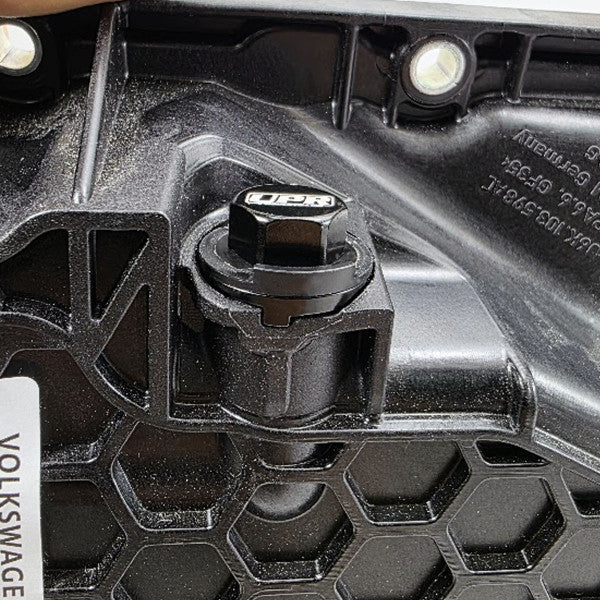

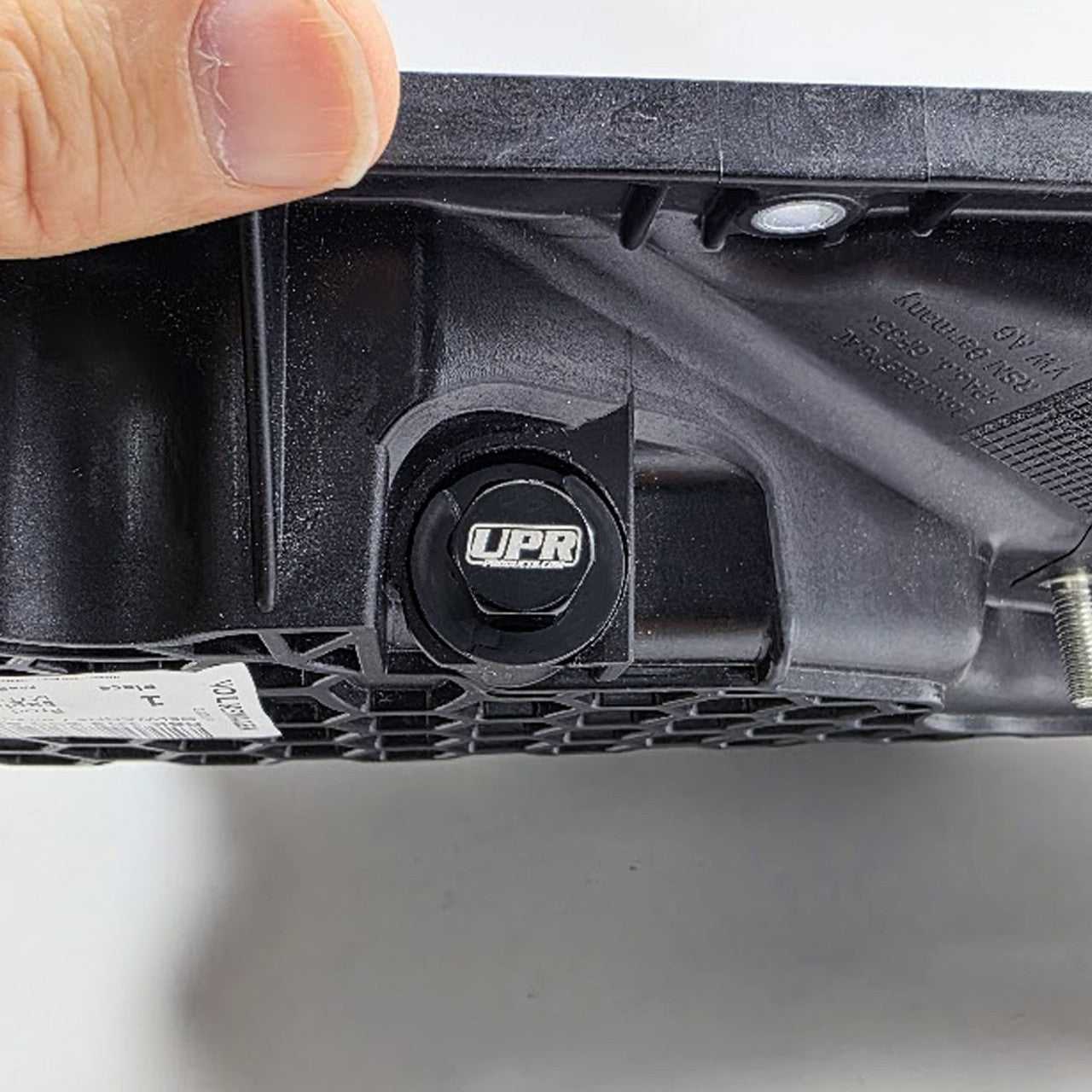

Simple twist installation with the built-in quick turn handle. Simply align the UPR logo in the horizontal position with the lock tab below it. Do not torque this as it€™s securely locked in place with the lock washer and retaining clip and sealed by a Viton O-ring. (Align the lock washer tab with the tab recess in the Oil Sump Pan then install the retaining clip and you are all set)
Early Sump Oil Pan / EA888.3 Engine Sump - VW part No. 06K 103 600 R Requires the straight cut locking washer.
Later Sump Oil Pan/ EA888.3 Engine Sump - VW part No. 06K 103 600 AE Requires the angle cut locking washer

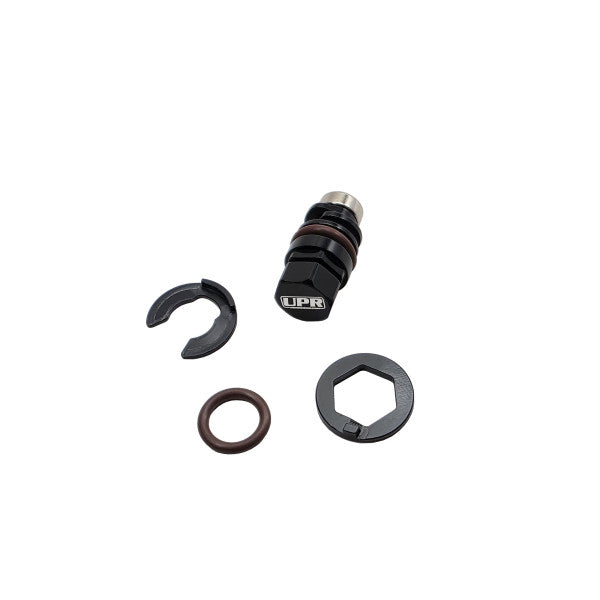

Includes one replacement Viton O-ring and a retaining clip and two sump washers one for the early model and for the late model sump.
Fits 2.0 TSI & 1.8 TSI / EA888 Gen 3 Engines and 2.0 TSI / EA888 Gen 3B engines.
Product Features:
» Installs in minutes
» CNC Machined Billet Aluminum
» Built-in Magnet on end of drain plug
» Replaces the factory plastic drain plug
» Comes with a spare O-ring
» Fits both early and late model sumps with included Locking Washer for each.
Fits These Vehicles:
VW Golf 7 & 7.5 GTI & Clubsport 2013-2020
VW Golf 7 & 7.5 R 2013-2020
VW Golf 7 & 7.5 1.8 TSI 2013-2020
VW Passat 2.0 TSI B8 2015+
VW Passat 2.0 TSI 190hp B8 2018+
VW Arteon 2.0 TSI 2017+
VW Arteon 2.0 TSI 190hp 2017+
VW Arteon R 2.0 TSI 320ps 2020+
VW T-Roc R 2.0 TSI 2019+
VW T-Roc 2.0 TSI 190hp 2017+
VW Tiguan II 2.0 TSI 2016+
VW Jetta / GLI 7 2018+
VW Polo 5 GTI 1.8 TSI 6C 2015-2018
VW Polo 6 GTI 2.0 TSI AW 2017-2021
Audi S1 2.0 TFSI 2015-2018
Audi A1 2.0 40 TFSI GB 2019-2021
Audi S3 8V 2013-2020
Audi A3 2.0 TSI / 1.8 TSI 8V 2013-2020
Audi A3 40 TFSI 2.0 TSI 190hp 2016-2020
Audi TTS 2.0 TFSI 8S 2015-2021
Audi SQ2 2018+
Audi Q2 40 TFSI 2.0 TSI 190hp 2017+
Audi Q3 45 TFSI 2.0 TSI 2018+
Audi Q3 40 TFSI 2.0 TSI 190hp 2018+
SEAT Leon III Cupra 5F 2014-2020
SEAT Leon III 2.0 TSI 190hp 5F 2018+
SEAT Leon III 1.8 TSI 5F 2014-2020
Cupra Formentor 2020+
Cupra Ateca 2018+
SEAT Ateca 2.0 TSI 190hp 2017+
SEAT Tarraco 2.0 TSI 2018+
SEAT Tarraco 2.0 TSI 190ps 2018+
SEAT Tarraco 2.0 TSI 245ps 2021+
Skoda Octavia III vRS 2.0 TSI 5E 2014-2020
Skoda Octavia III 2.0 TSI 190hp 5E 2017-2020
Skoda Superb III 1.8 / 2.0 TSI 3V 2015+
Skoda Superb III 2.0 TSI 190hp 3V 2019+
Skoda Kodiaq 2018+
Skoda Kodiaq 2.0 TSI 190hp 2018+
